TECHNICAL CHARACTERISTICS
|

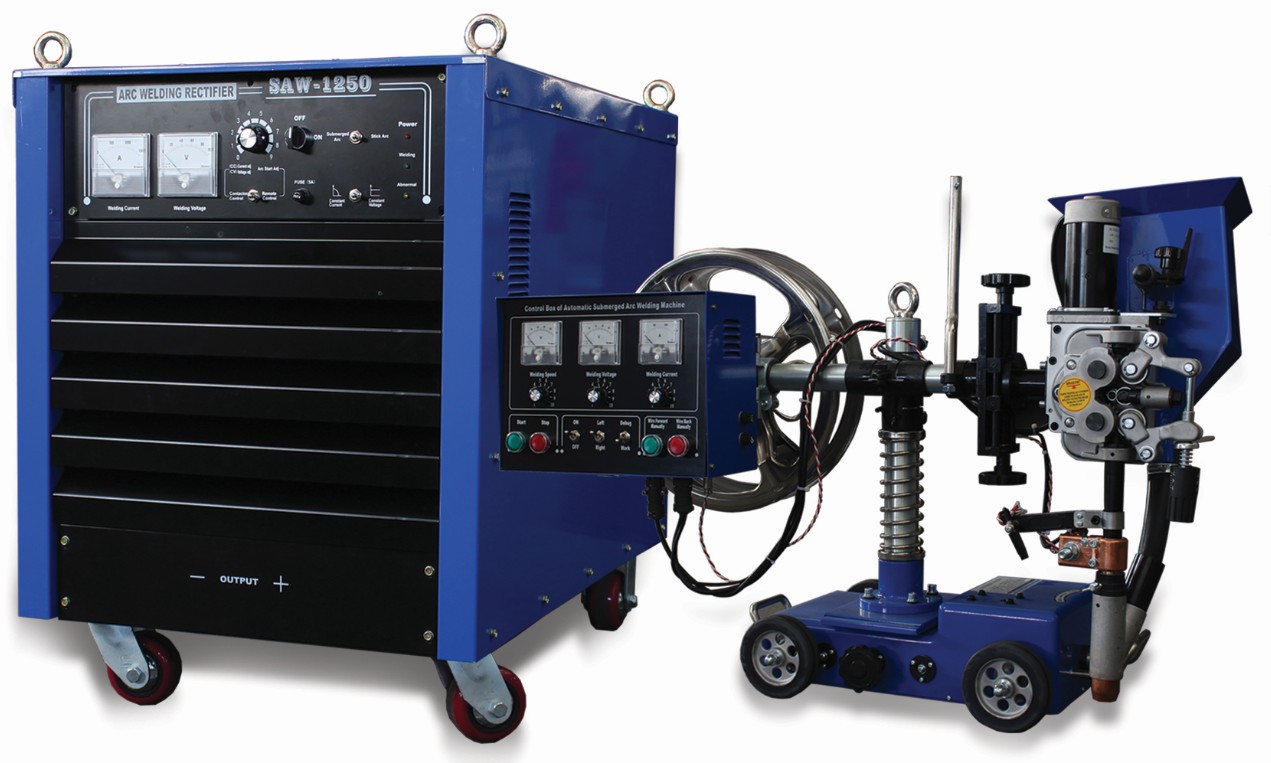

Submerged ARC SAW I250 DC
|
Tractor
|
|
Input Voltage
|
V
|
415V +- 10%, 3-PG, 50Hz/
380V +- 10%, 3-PH, 50Hz
|
-
|
|
Power Factor
|
A
|
0.8
|
-
|
|
Idling Input Current (max)
|
VDC
|
4
|
-
|
|
Max Open Circuit Voltage (OCV)
|
A
|
72
|
-
|
|
Rated Input Current
|
A
|
116
|
-
|
|
Rated Input Capacity
|
KVA
|
93
|
-
|
|
Current Range
|
A
|
100 - 1250
|
-
|
|
Rated Duty Cycle - 60%
|
A/V
|
1250 / 44
|
-
|
|
Rated Duty Cycle - 100%
|
A/V
|
1000 / 42
|
-
|
|
Rated Voltage of Traveling Mechanism
|
V
|
-
|
SERVO MOTOR DC110V
|
|
Rated Voltage of Wire Feeder Mechanism
|
V
|
-
|
SERVO MOTOR DC110V
|
|
Welding Travel Speed
|
M/MIN
|
-
|
0.2 - 2.2
|
|
Wire Feeding Speed
|
M/MIN
|
-
|
0.3 - 3.0
|
|
Wire Diameter
|
mm
|
-
|
(2.0-3.0),(3.0-4.0),(5.0-6.0)
|
|
Adjustable Height of Tractor Head
|
mm
|
-
|
70
|
|
Adjustable Range of Tractor Head (horizontal x vertical)
|
mm
|
-
|
(100 x 100)
|
|
Rotatable Angle of Tractor Head Around Vertical Column
|
|
-
|
+- 90
|
|
Welding Torch Rotating Angle
|
|
-
|
+- 45
|
|
Volume of Flux Container
|
liter
|
-
|
6
|
|
Wire Spool Capacity
|
kg
|
-
|
25
|
|
Inner Diameter of Wire Spool
|
mm
|
-
|
300
|
|
Dimension
|
mm
|
1000 x 610 x 880
|
1080 x 489 x 740
|
|
Weight
|
kg
|
420
|
55 (does not include wires)
|
