Product Quick Specifications:
* Input Voltage : 415V
* Input Current : 26A
* Welding Current : 40 ~ 100A
* Duty Cycle : 65%
* Weight : 156Kg
* Dimensions (mm) : 435X 732X 860
|
 |
| Product Full Specifications: |
| |
Features |
|
| |
| |
- Two Piece contoured handle
- Highest quality design and manufactured
- Integral safety interlock
- Application versatility: 20-100 amps
- Compatability with more than 20 popular power supplies
- Modular design for easy repair-rather than replacement
- Single flow, gas with pilot arc start
- Same replacement parts as PC-40M machine torch
- Direct fit torch packages or generic torch packages with hook up kit
- Full assortment of accessories
- Worldwide parts available
|
|
|
| |
|
|
| |
Specification |
|
| |
| |
|
TECHNICAL CHARACTERISTICS
|

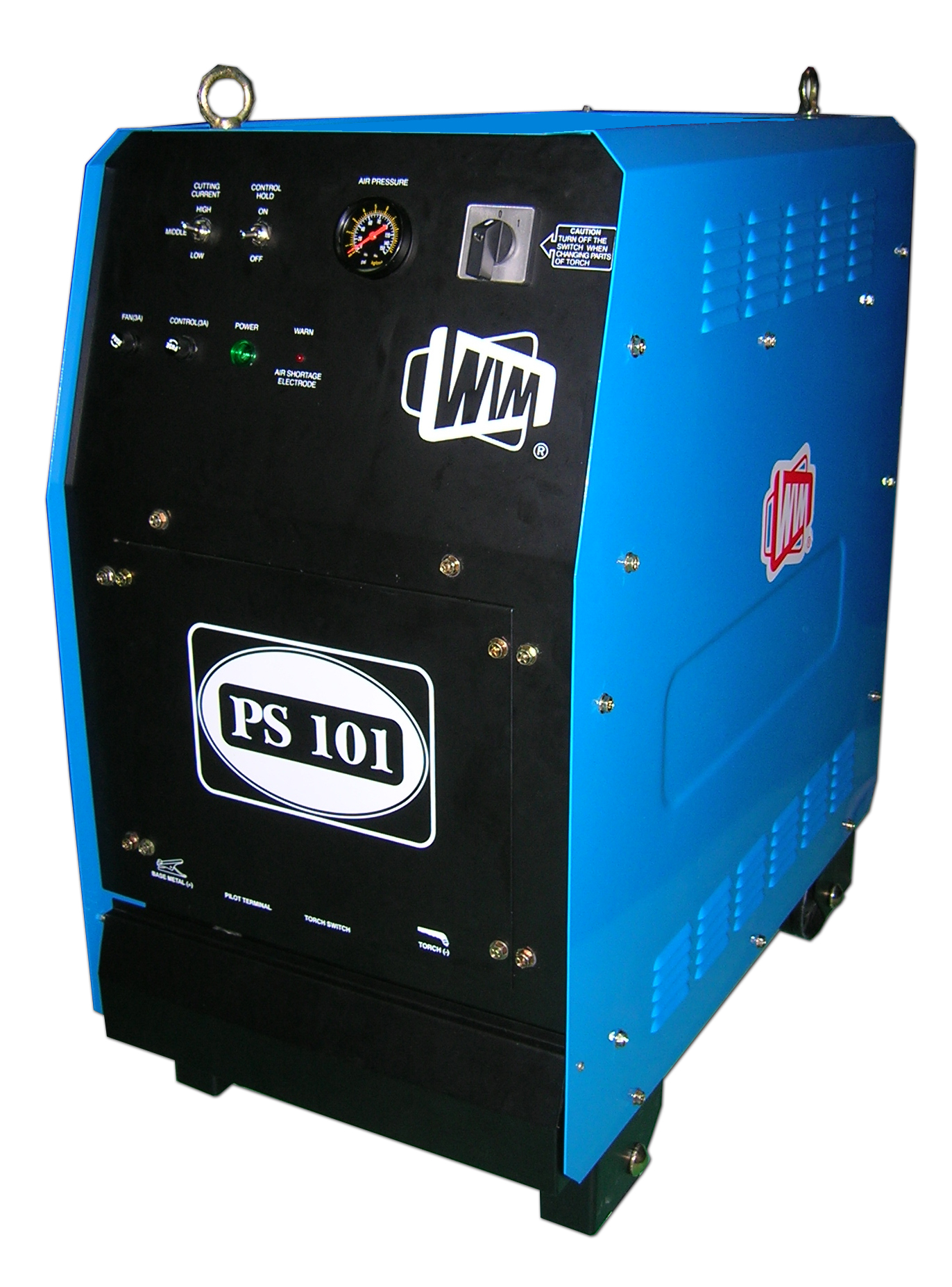

PS 101
|
|
Primary Supply
|
3 ph V
|
380 / 415V
|
|
Rated Input
|
A
|
26
|
|
Output Current (By Thyristor)
|
A
|
40 , 65 , 100 (3 steps)
|
|
Rated Load Voltage
|
V
|
145
|
|
Air Pressure
|
psig
|
60 - 70
|
|
Air Flow
|
Scfh
|
240
|
|
Plasma Gas
|
|
Air
|
|
Cooling Gas
|
|
Air
|
|
Weight (without input cable &plug)
|
Kg
|
145
|
|
Dimension (LxWxH)
|
mm
|
435X 732X 860
|
|
*Please note that the duty cycle value may varies according to room temperature.
|
|
|
|
| |
|
|
| |
Accessories |
|
| |
| |
-Abilplas 110/150 plasma torch
-THP- 110/150
-Plasma guid kit
-Earth clamp
-SRGH-W3T8
|
|
|
| |
|
|
| |
Cutting Ability for PS100 |
|
| |
| |
Indicated number shows approximate cutting speed (m/min) Cutting ability shows in case of three phase input. (In case os single phase input can be up to 35mm for mild steel stc.)
|
|
|
