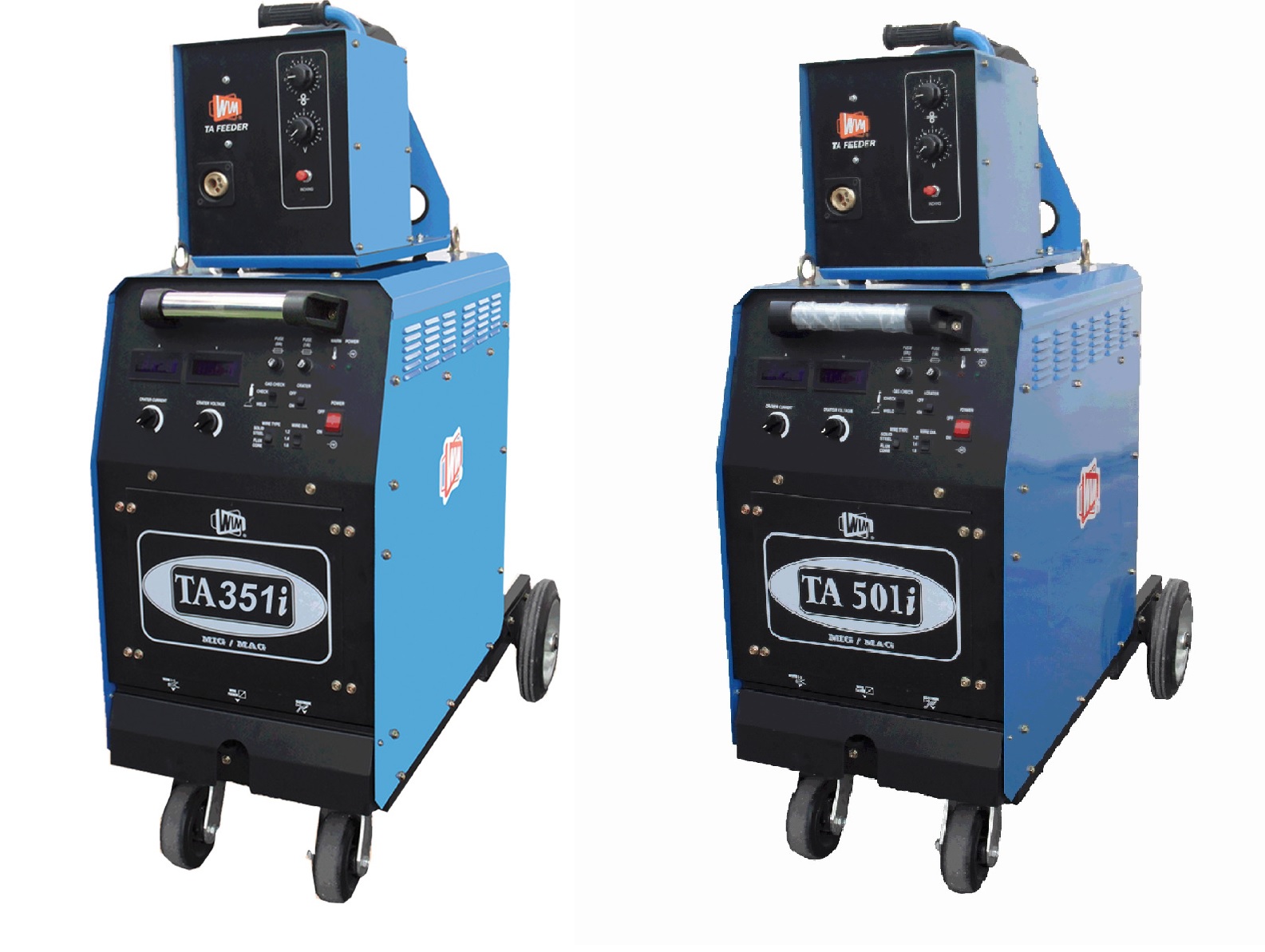

  WIM MIG TYRISTOR: TA301i / TA501i
  View other products in this category:  1  2  3  4  5  6  7  8  9  10  11  12  13  14  15

(Click on the pictures above to enlarge)

TA351i and TA501i are designed after throughout research and careful consideration to meet the requirements for the automotive body repairs and light production industry. Problems caused by “Burn Through” are common in the light gauge metal welding by the MIG process has been eradicated with the TA351i and TA501i.

This is done through better circuitry in the PCB, good quality rectification components and effective wire feeder. Finally, careful insulation during transformer construction, with high quality lamina plates as the iron core and superior primary and secondary windings enable us to achieve a greater output with maximum efficiency for this class of power source.

Welds:
  • Cast Iron
  • Steel
  • Stainless Steel
  • Aliminium
  • Copper
  • Brass
Typical Usage:
  • Automobile
  • Manufacturing
  • Fabric Plate Work
  • Construction
  • Metalworks
  • Ship Building
ADVANTAGES OF TA301i AND TA501i
  • Simple control with “clean” appearance for easy operations.
  • Built with front moveable wheel for easy moving.
  • Thermostatic and electronic protection from current over-load.
  • Complete set with internal wire feeder.

TECHNICAL CHARACTERISTICS TA351i TA501i
Primary Supply 380V / 451V 380V / 415V
Frequency 50Hz / 60Hz 50Hz / 60Hz
Rate Max. Input Power 18.1 kVA 31.9 kVA
Input Power Capacity 20 kVA 40 kVA
Generator 36.2 kVA 63.8 kVA
Max. No. Load Voltage 53V 64V
Output Current DC 75A – 350A DC 80A – 500A
Output Voltage DC 17.8V – 31.5V DC 18V – 39V
Rate Duty Cycle 60% 350A 60% 500A
Dimension 540 x 1005 x 890 (mm) 540 x 1005 x 890 (mm)
KVA
Weight (without input cable & plug) 139kg 178kg
