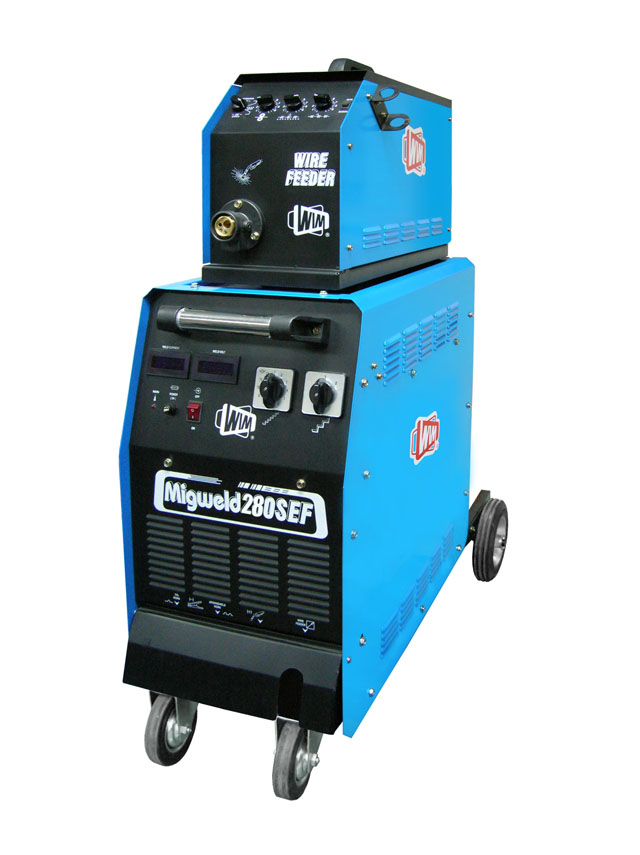

Whether it’s mild steel, stainless steel, aluminium, or alloy materials, the MIG 280SEF is designed to suit the light medium industries requirements.

The MIG welding power source sets out to impress with a smooth arc. With 280A of power allow you to weld with large metal wire, whether it’s MIG or Flux cored.

The Migweld series are the ultimate investment that will just keep on bringing return to your operations.

With an added advantage of a portable separate wire feeder unit including wire feed control and made selection option, giving the portability require for difficult to access jobs without moving the power source.

Welds:
  • Steel
  • Stainless Steel
  • Aliminium
  • Copper
  • Brass
Typical Usage:
  • Automative
  • Maintenance
  • Fabrication
  • Manufacturing
  • Auto Body

Technical Characteristics

Main Supply 50 / 60Hz 3-phase
Voltage V 380 – 415
Max. Input Current A 24
Output Rating 280A / 28V
Duty Cycle Rating @ 60% 250A / 26.5V
Duty Cycle Rating @ 100% 190A / 23.5V
Output Control Tapping
Voltage Adjustment Steps 4 x 8
Open Circuit Voltage V 18.5 - 39
Welding Range @ 50 -210A A 40 - 280
Filler Wire Size Range mm 0.6 - 1.2
Wire Feeding Speed Meter /min 1 – 20
Timer (Spot or Stitch Welding) second 0 - 5
Degree of Protection IPS21
Insulation Class H 180oC
KVA 17.25
Weight kg 137
Dimension (mm) mm 515 x 940 x 820
