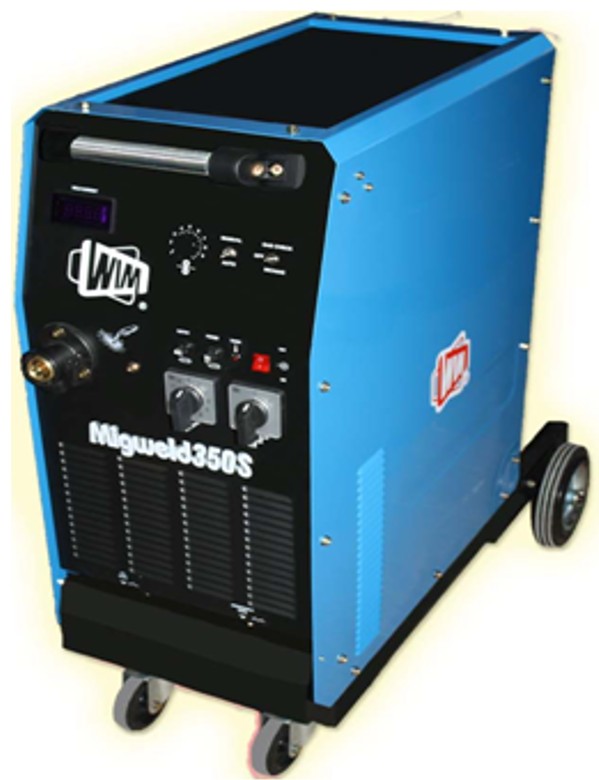

MIG 350S is designed for heavy industries usage to arrive at a reliable machine to meet the requirements needed.
With the careful insulation during transformer construction, with high quality lamina plates as the iron core and superior primary and secondary windings process enable us to achieve a high output with maximum efficiency for this class of power source.
|
Welds:
- Steel
- Stainless Steel
- Aluminium
- Copper
- Brass
|
Typical Usage:
- Automative
- Maintenance
- Fabrication
- Manufacturing
- Auto Body
|
Features
- The MIGWELD series are easy to adjust. Coarse and fine voltage steps are clearly marked on the power source, providing easy control and quick value setting.
- Better welding parameters 0.6mm – 1.6mm (Min 30amps – Max 500amps).
- Heavy duty chassis construction.
- Double thermal protection for transformer and rectifier.
- Ergonomic and value added features. (Tool container, torch holder and gas tray holder).
|
|
Technical Characteristics
| Main Power Supply |
50Hz/60Hz |
3-phase |
| Voltage |
V |
415 |
| Max. Input Current |
A |
26 |
| Output Rating |
|
350A / 28V |
| Duty Cycle Rating @ 60% |
|
350A / 32V |
| Duty Cycle Rating @ 100% |
|
270A / 28V |
| Output Control |
|
Tapping |
| Voltage Adjustment |
Steps |
2 x 12 |
| Open Circuit Voltage |
V |
18V ~ 44V |
| Filler Wire Size Range |
mm |
0.8 ~ 1.6 |
| Wire Feeding Speed |
Meter/Minute |
1 ~ 17 |
| Static Characteristic |
|
Flat (constant voltage) |
| Degree of Protection |
|
IPS21 |
| Insulation Class |
|
H180oC |
| Weight |
kg |
126.5 |
| Dimension (L x W x H) |
mm |
980 x 373 x 920 |
|
