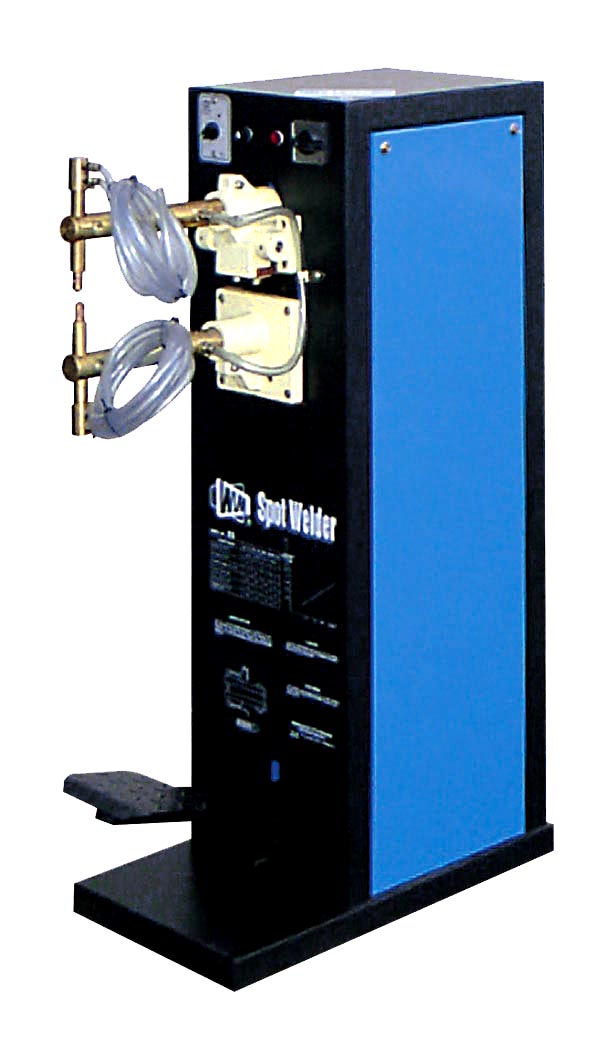

(Click on the pictures above to enlarge)
Product Quick Specifications:
* Input Voltage : 415V
* Input Current : 20A
* Welding Current : 7,500A
* Duty Cycle : 9%
* Weight : 124Kg
* Dimensions (mm) : 430 x 980 x 1410
Product Full Specifications:
| Specification |
|
| |
| |
|
Standard Specifications of Spot Welder of MC, PMC
|
|
Type
|
MC 15
|
PMC 15
|
MC 25
|
PMC 25
|
|
Rated capacity (50%) Duty cycle)
|
KVA
|
15
|
15
|
25
|
|
Rated Primary Voltage
|
V
|
230/415
|
|
Spot
|
Rated Frequency
|
Hz
|
50
|
|
Rated maximum input
|
KVA
|
20
|
20
|
45
|
|
Duty cycle
|
%
|
9
|
9
|
9.2
|
|
Rated secondary current (Max.)
|
A
|
7,500
|
7,500
|
12,000
|
|
Dimensions of throat depth
|
Depth
|
mm
|
300
|
300
|
330
|
|
Opening
|
150
|
|
Tip holder
|
Diameter
|
mm
|
22
|
|
Length
|
153
|
|
Tip
|
Diameter
|
mm
|
16
|
|
Taper
|
1/5
|
1/5
|
|
Maximum Electrode Force
|
Kg
|
180
|
280
|
320
|
420
|
|
Quantity of Cooling Water
|
1/min
|
6
|
|
Net Weight (Approx.)
|
Kg
|
118
|
125
|
158
|
166
|
|
Dimensions mm
|
Width
|
W 335
|
W 335
|
W 375
|
|
-
|
Depth
|
D 640
|
D 640
|
D 685
|
|
-
|
Height
|
H 1190
|
|
*Please note that the duty cycle value may varies according to room temperature.
|
|
