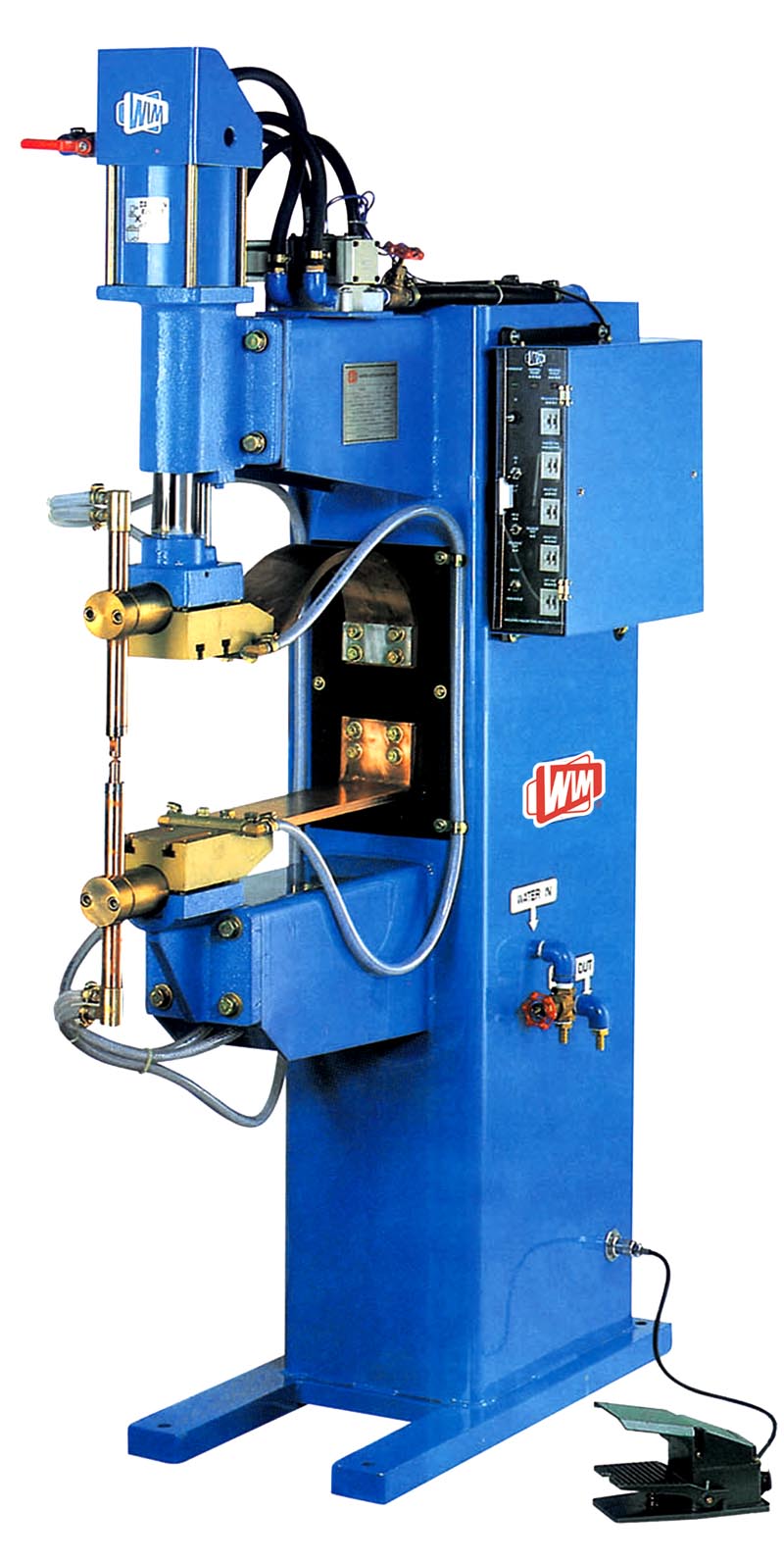

(Click on the pictures above to enlarge)
Product Quick Specifications:
* Input Voltage : 415V
* Input Current : 150A
* Welding Current : 25,000A
* Duty Cycle : 6%
* Weight : 380Kg
* Dimensions (mm) : 820 x 1390 x 1980
Product Full Specifications:
|
Type Code
|
JPC 35
|
JPC 50
|
JPC 75
|
|
A
|
1625
|
1625
|
1625
|
|
B
|
1085
|
1085
|
1085
|
|
C
|
510
|
510
|
510
|
|
D
|
575
|
575
|
560
|
|
E
|
975
|
975
|
975
|
|
F
|
190
|
190
|
190
|
|
G
|
355
|
355
|
420
|
|
H
|
795
|
795
|
890
|
|
I
|
175
|
175
|
175
|
|
J
|
60
|
60
|
60
|
|
K
|
285
|
285
|
345
|
|
L
|
765
|
765
|
855
|
|
|
|
| |
|
|
| |
Specification |
|
| |
| |
|
Standard Specifications of Spot Projection Welding Machine
|
|
Type
|
JPC35
|
JPC-50
|
JPC-75
|
|
Rated Capacity (50% Duty Cycle)
|
KVA
|
35
|
50
|
75
|
|
Rated Primary Voltage
|
V
|
415
|
|
Rated Frequency
|
Hz
|
50
|
|
-
|
Hz
|
60
|
|
-
|
Rated Maximum Input
|
KVA
|
80
|
120
|
196
|
|
-
|
-
|
KVA
|
90
|
130
|
237
|
|
Spot
|
Duty Cycle
|
%
|
8.5
|
12.0
|
|
7.5
|
9.5
|
|
Rated Secondary current (max)
|
A
|
14 000
|
16 000
|
25 000
|
|
Dimensions of Throat Depth
|
Depth
|
mm
|
600
|
|
Opening
|
mm
|
170
|
|
Tip Holder
|
Diameter
|
mm
|
25
|
|
Length
|
Upper 250, Lower 150
|
|
Tip
|
Diameter
|
mm
|
16
|
|
Taper
|
1/5
|
|
Projection
|
Rated Maximum Input
|
KVA
|
90
|
145
|
220
|
|
100
|
155
|
230
|
|
Duty Cycle
|
%
|
7.5
|
6.0
|
|
6.0
|
5.0
|
|
Rated Secondary
|
A
|
16,000
|
19,000
|
27,000
|
|
Dimensions of Throat Depth
|
Depth
|
mm
|
410
|
|
Opening
|
170
|
200
|
|
Height Above Ground of
Upper Surface of Lower Platen
|
mm
|
815
|
|
Maximum Electrode Force
|
Kg
|
500
|
1000
|
|
Electrode Stroke
|
mm
|
10 ~ 60
|
|
Quantity of Cooling Water
|
1/min
|
6
|
8
|
12.7
|
|
Net Weight (Approx.)
|
Kg
|
310
|
330
|
380
|
|
*Please note that the duty cycle value may varies according to room temperature.
|
|
|
|
| |
|
|
| |
Accessories |
|
| |
| |
-Foot Control
-External Dimension
|
|
