Product Quick Specifications:
* Input Voltage : 220 / 380 / 415V
* Input Current : 110 / 70 / 65A
* Welding Current : 50 ~ 600A
* Duty Cycle : 60%
* Weight : 216Kg
* Dimensions (mm) : 585 x 875 x 750
Product Full Specifications:
|
TECHNICAL CHARACTERISTICS
|

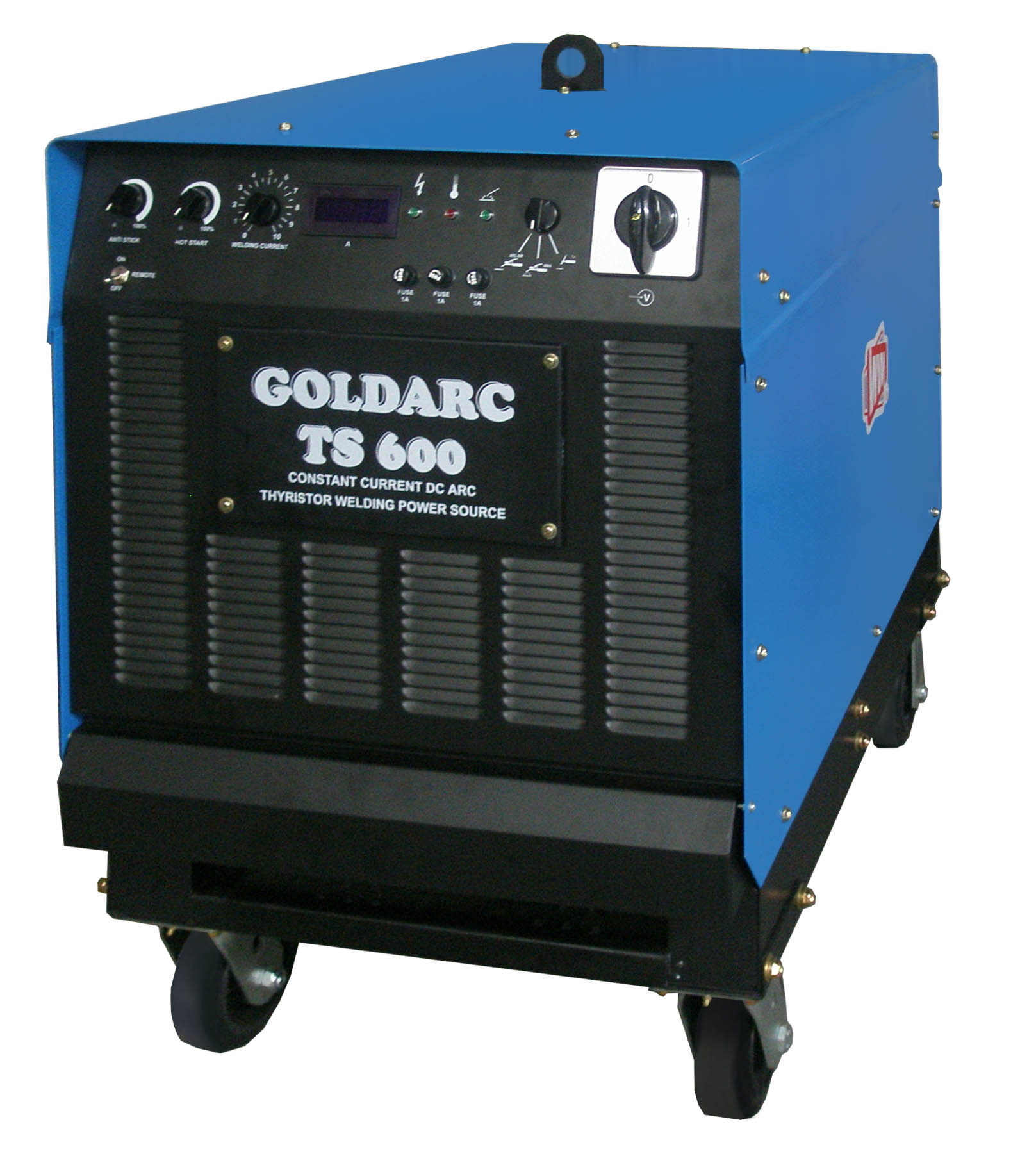

TS 600
|
|
Primary Supply
|
50/60Hz (3ph V)
|
415V
|
|
Amp Input at Rated Load Output
|
|
65A , 47KVA
|
|
Welding Amp Range
|
A
|
50 - 600
|
|
Max. Open Circuit Voltage
|
VDC
|
100 - 365
|
| |
A
|
130v - 400
|
|
Max. Open Circuit Voltage
|
V
|
75
|
|
Welding Current :
|
|
|
|
Duty Cycle Rating at 60%
|
|
600A , 44V
|
|
KW
|
|
36
|
|
Weight ( Without input cable & plug )
|
Kg
|
180
|
|
Dimension (LxWxH)
|
mm
|
584x483x889
|
|
*Please note that the duty cycle value may varies according to room temperature
|
