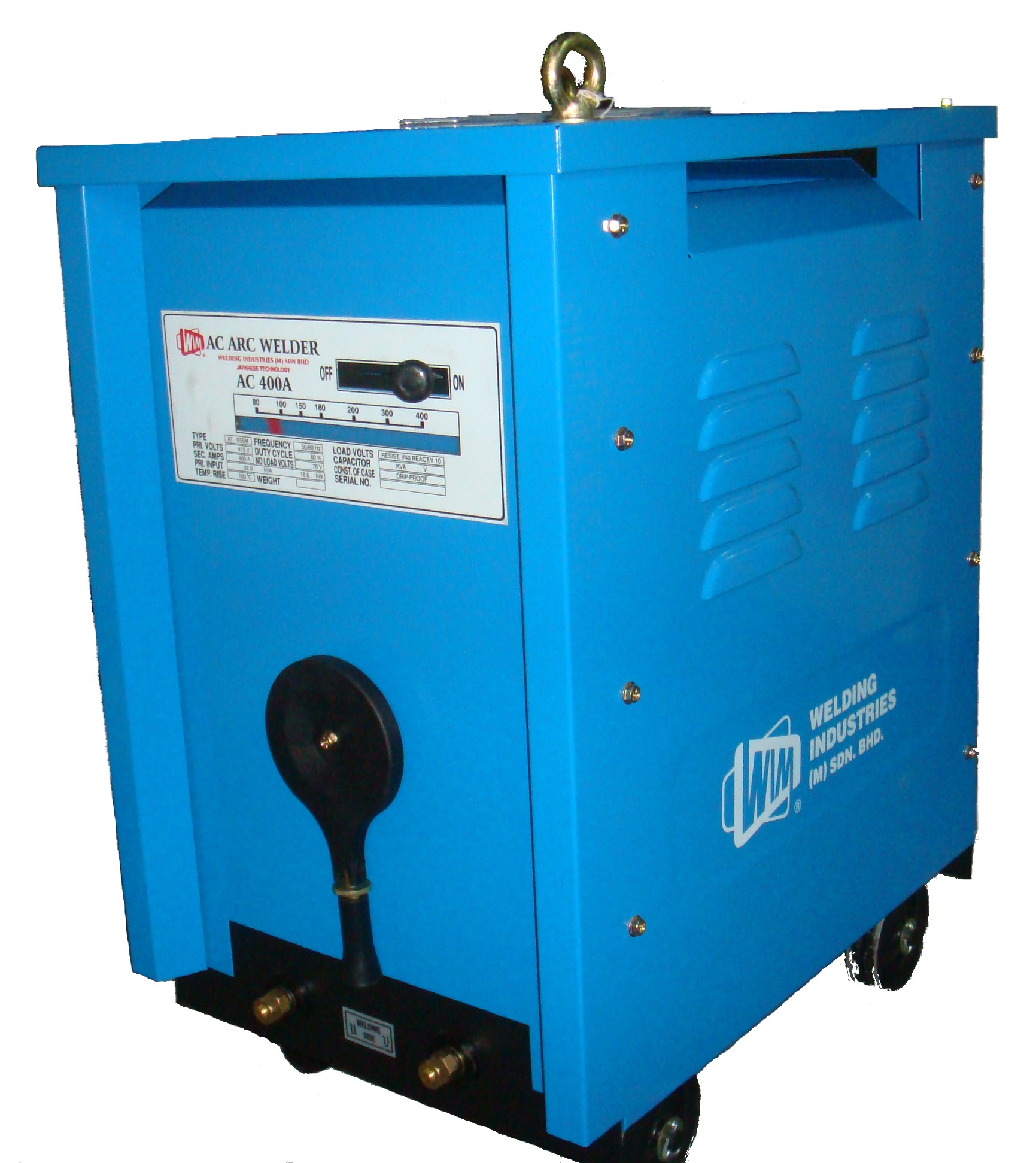

- Stable are characteristic : Large capacity welding transformer are designed with a no-load voltage capacity, providing extremely stable arc over the full welding current range.
- Smooth welding current regulation : The welding current is continuously adjusted with the Moving-core handle.
- Reliable outer case structure : The unit is made from a heat resistant design, with a naturally ventilated cooling system and a reliable outer case.
- Easy movement : The eye bolts on the top and the wheels under the main body are attached so the machine can easily be moved.
- Minimum power loss : The special design of the moving-core transformer structure reduces electrical power loss.
- Highly reliable machine construction : We use a heavy duty, large capacity air cooled transformer for a reliable machine construction. The transformer coils are of a large capacity, air cooled design with band coil windings. The coils have class H insulation and are capable of withstanding temperatures as high as 200ºC. The transformer with a welded-joint core structure is installed in a steel case. The unit is reliable, even for heavy duty welding jobs.
- Design safety : The input cable connection terminal block is installed in the outer case. No tools are needed to connect the output cables to the terminals. There is a steel net plate located at the bottom of the casing for safety purpose.
|
|
