Product Quick Specifications:
* Input Voltage : 220 / 380 / 415V
* Input Current : 55 / 35 / 32A
* Welding Current : 30 ~ 300A
* Duty Cycle : 60%
* Weight : 147Kg
* Dimensions (mm) : 490 x 750 x 715
Product Full Specifications:
| |
| |
|
TECHNICAL CHARACTERISTICS
|

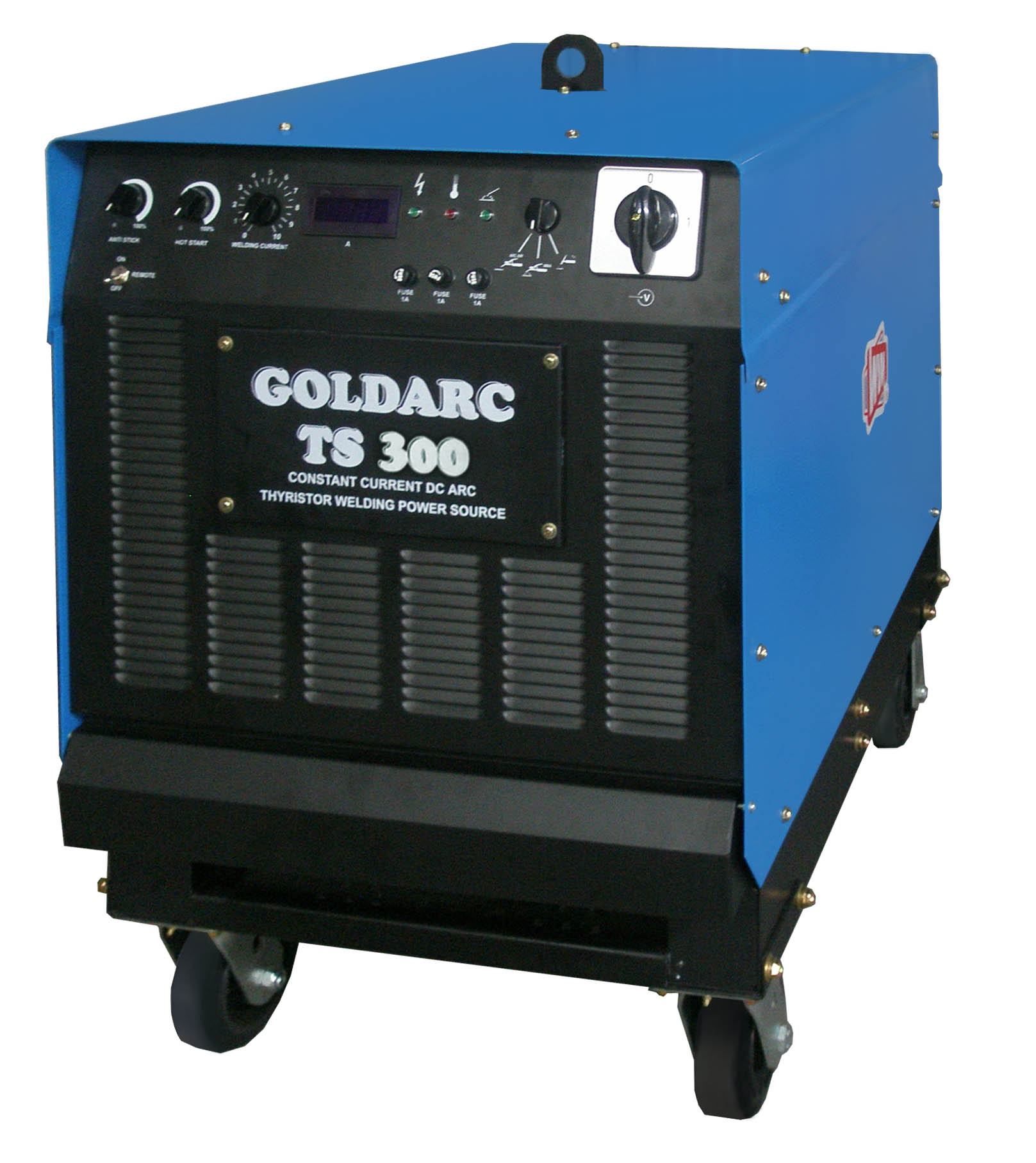

TS 300
|
|
Primary Supply
|
50/60Hz (3ph V)
|
415V
|
|
Amp Input at Rated Load Output
|
|
32A , 23KVA
|
|
Welding Amp Range
|
A
|
30 - 300
|
|
Max. Open Circuit Voltage
|
VDC
|
50 - 150
|
| |
A
|
65 - 220
|
|
Max. Open Circuit Voltage
|
V
|
75
|
|
Welding Current :
|
|
|
|
Duty Cycle Rating at 60%
|
|
300A , 32V
|
|
KW
|
|
17
|
|
Weight ( Without input cable & plug )
|
Kg
|
85
|
|
Dimension (LxWxH)
|
mm
|
483x419x749
|
|
*Please note that the duty cycle value may varies according to room temperature
|
|
