Product Quick Specifications:
* Input Voltage : 415V
* Input Current : 45A
* Welding Current : 45 ~ 400A
* Duty Cycle : 60%
* Weight : 350Kg
* Dimensions (mm) : 585 x 900 x 735
Product Full Specifications:
| |
| |
|
TECHNICAL CHARACTERISTICS
|

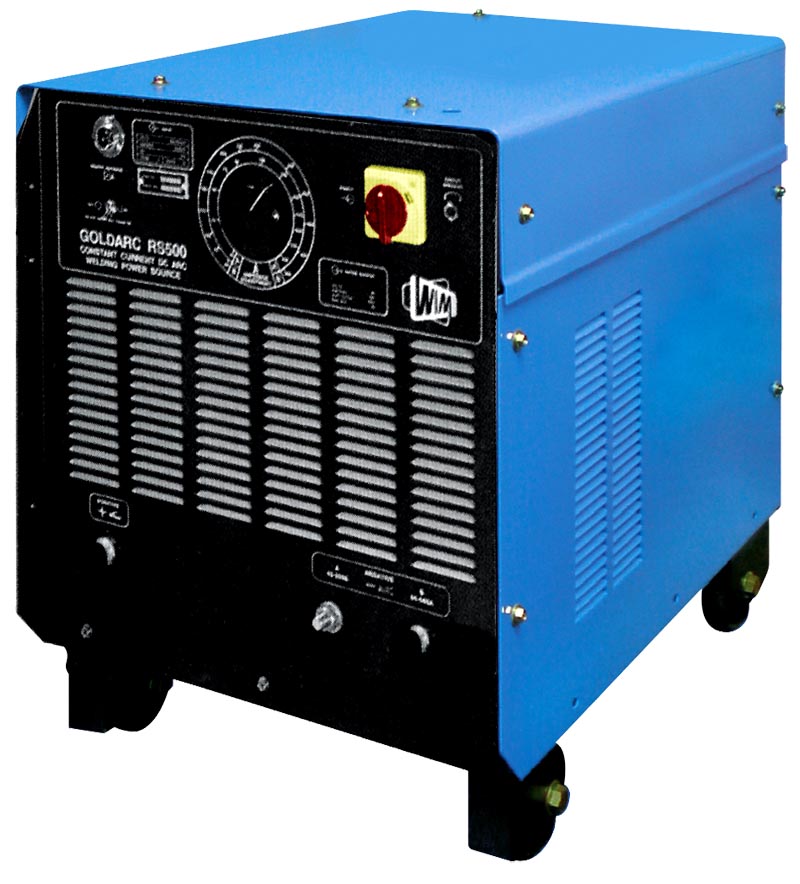

GOLDARC RS 500
|
|
Primary Supply
|
50/60Hz (3ph V)
|
415V
|
|
Amp Input at Rated Load Output
|
KVA
|
45A , 32KVA
|
|
Welding Amp Range :
|
|
|
|
AC ( Low )
|
A
|
-
|
|
AC ( High )
|
A
|
-
|
|
DC ( Low )
|
A
|
400 ( Max )
|
|
DC ( High )
|
A
|
45 ( Min )
|
|
Max. Open Circuit Voltage
|
mm
|
75VDC
|
|
KW
|
|
24
|
|
Weight ( Without input cable & plug )
|
Kg
|
350
|
|
Dimension (LxWxH)
|
mm
|
584x584x864
|
|
*Please note that the duty cycle value may varies according to room temperature
|
|
