Product Quick Specifications:
* Input Voltage : 220 / 380 / 415V
* Input Current : 76 / 48 / 45A
* Welding Current : 40 ~ 400A
* Duty Cycle : 60%
* Weight : 157Kg
* Dimensions (mm) : 490 x 750 x 715
Product Full Specifications:
|
TECHNICAL CHARACTERISTICS
|

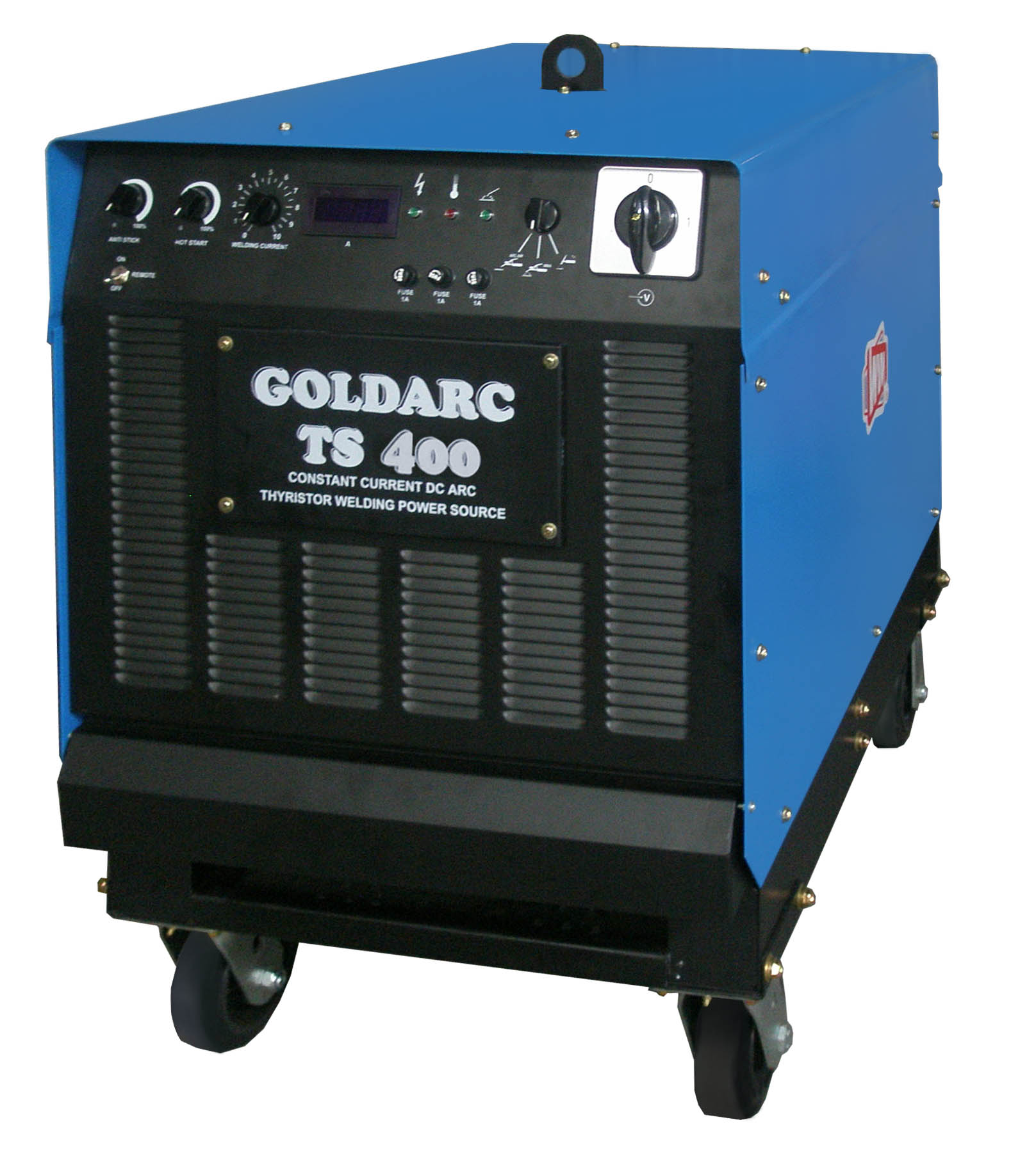

TS 400
|
Primary Supply
|
50/60Hz (3ph V)
|
415V
|
Amp Input at Rated Load Output
|
|
45A , 32KVA
|
Welding Amp Range
|
A
|
40 - 400
|
Max. Open Circuit Voltage
|
VDC
|
80 - 275
|
|
A
|
100 – 335
|
Max. Open Circuit Voltage
|
V
|
75
|
Welding Current :
|
|
|
Duty Cycle Rating at 60%
|
|
400A , 36V
|
KW
|
|
21
|
Weight ( Without input cable & plug)
|
Kg
|
164
|
Dimension (LxWxH)
|
mm
|
490x750x715
|
*Please note that the duty cycle value may varies according to room temperature
|
